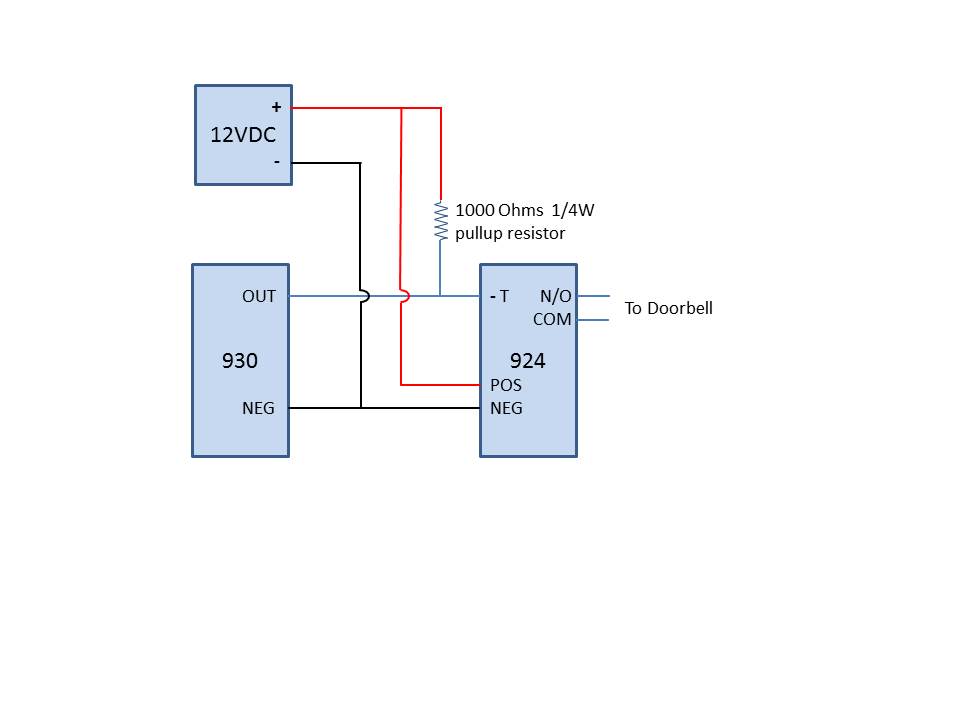

Doorbell Circuit For Ring Etc using Elk 930 And 924 V2

  • Media owner RAL
  • Date added
Circuit for use with video doorbells that draw too little or too much current for Elk 930
